NH Series  "Laser Probe 3D Measuring Instrument"

The perfect solutions for measuring aspherical lens, LCD lgith panel, moldings, etc.

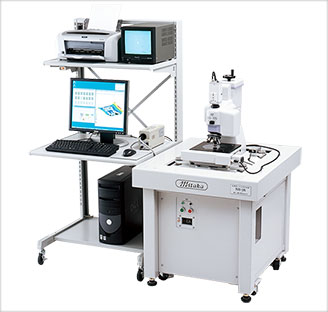

NH-3N

standard model of NH-Series

specification

  • measuring range (X, Y, Z) = 150 x 150 x 10mm
    Z = 110mm (optional)
  • scale resolution (X, Y, Z) = 0.1 x 0.1 x 0.01μm

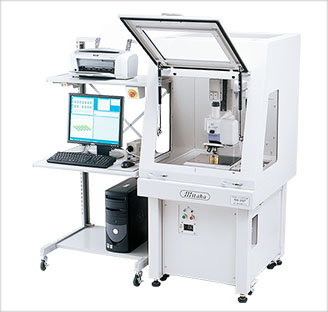

NH-3SP

the highest-end model of NH-Series (with 1nm scale resolution)

specification

  • measuring range (X, Y, Z) = 150 x 150 x 10mm
    Z = 130mm (optional)
  • scale resolution (X, Y, Z) = 0.01 x 0.01 x 0.001μm

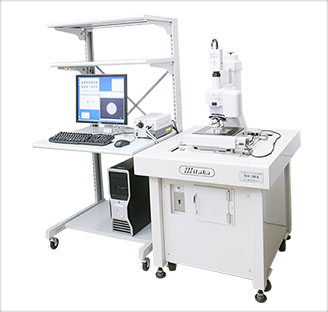

NH-3MA

the total evaluation from process to image formation performance

texture measurement with Mitaka laser probe

NH-3MA is fully equipped with NH-Series basic surface texture measuring functions. It measures cross section of lens and molds and its specialized software calculates curvature, central coordinate, etc.

major functions

  • lens surface texture measurement (measured with the Laser Probe)
  • optical property evaluation (measured with image processing)

applications

  • MLA for liquid crystal projectors
  • MLA and moldings for optical communications
  • fly-eye lens and moldings
  • rod lens arrays
  • CCD on-chip lens
  • planar microlens for integrated optical circuits

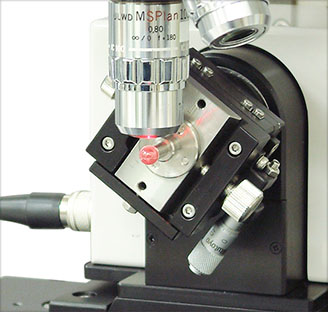

NH-3SP/SE

stitching measuring technology which enables to measure steep angles with over 60 degrees in sub-μm

NH-Series are capable of carring out absolute accuracy measurement in less than ±0.1μm for inclined surfaces within ±30 degrees. Mitaka stitching measuring technology enables to measure high NA aspherical lens with angles over 30 degrees. This measuring technology allows to measure up to ±90 degrees in high-precision measurement.

applications

  • camera lens for cell phones
  • digital camera lens
  • DVD pickup lens
  • condenser lens
  • ball lens
  • micro lens (array)
  • diamond cutting tool tip radius
  • optical fiber tip radius
  • endoscope lens
  • aspherical lens molds

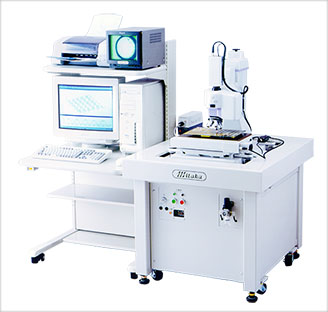

NH-4N

the perfect solution for densified and large-scaled semiconductor quality control

specification

  • measuring range (X, Y, Z) = 250 x 200 x 10mm
    Z = 110mm (optional)
  • scale resolution (X, Y, Z) = 0.1 x 0.1 x 0.01μm

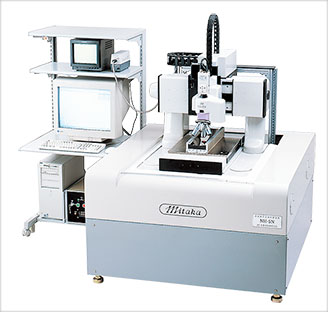

NH-5N

the perfect solution for large-scaled heavy-load workpieces, such as precision tools

specification

  • measuring range (X, Y, Z) = 300 x 400 x 130mm
  • scale resolution (X, Y, Z) = 0.1 x 0.1 x 0.01μm
