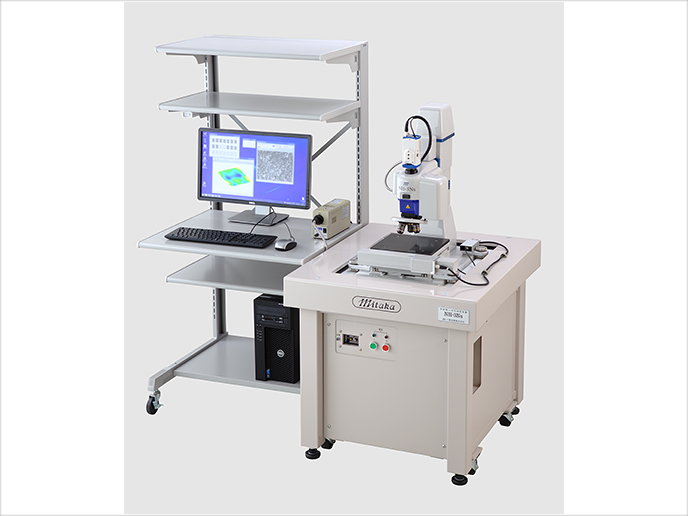

NH-3Ns  “Point Autofocus Probe 3D Measuring Instrument”

Standard model of NH-Series

Specification

  • measuring range (X, Y, Z) = 150 x 150 x 10mm
    Z = 110mm (optional)
  • scale resolution (X, Y, Z) = 0.1 x 0.1 x 0.01μm

Measurement example that NH-3Ns is perfect for

Volume of solder

Volume and height evaluation of solder out of 3D surface.

HDD head suspension

Measurement of delicate sample which easily distorts by one gentle touch.

High-density mounting board

Fine structure in a large area.

Fingerprint

High precision measurement of delicate material.

Human hair

Capturing fine structure.

Diamond abrasive grain

Cutting edge profile and projection height measurements.

Tip of turning tool

Offering 3D view, size evaluation and roughness measurement.

BGA

Enhanced functions for profile and height measurements, coplanarity evaluation, etc.

Warpage and waviness of wafer

High speed measurement of total warpage and waviness of wafer.

Measurable Examples

Fresnel lens molding...

Grating

Microlens array

Surface of aspherica...

Unevenness of evapor...

Grinding work surfac...

Wear volume of brake...

Tooth flank of a pre...

Measurable Examples with Optional Modules

End mill measurement

Precision micro punc...

Contour form and edg...
