The gear evaluation function offers various evaluation functions such as profile deviations, pitch deviations (single, adjacent and total cumulative), runout, Helix deviation and transmission error based on ISO 1328-1: 1995.

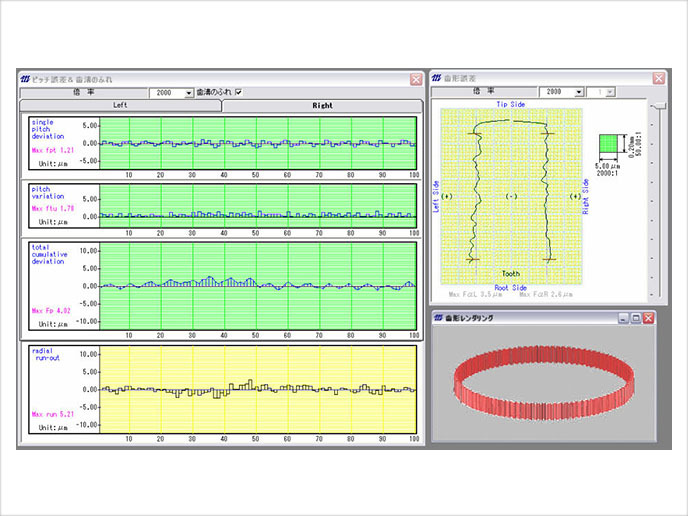

Also, it offers simulation of meshing by applying a pseudo-master gear which is created based on entering a gear dimensions without using a gear rolling tester. Furthermore, it offers transmission error evaluation between two measured data. (see the lower figure)

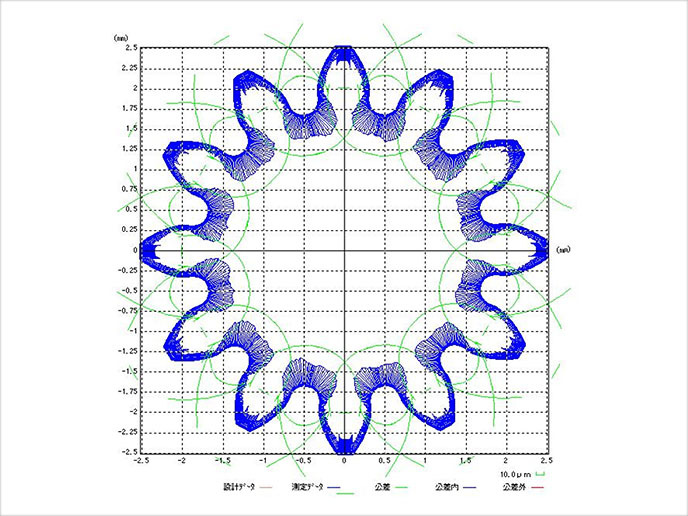

It also converts the measured data into DXF format which offers DXF comparison. (see the lower figure)
